Avionics tray and radio stack installed

Build Writeup

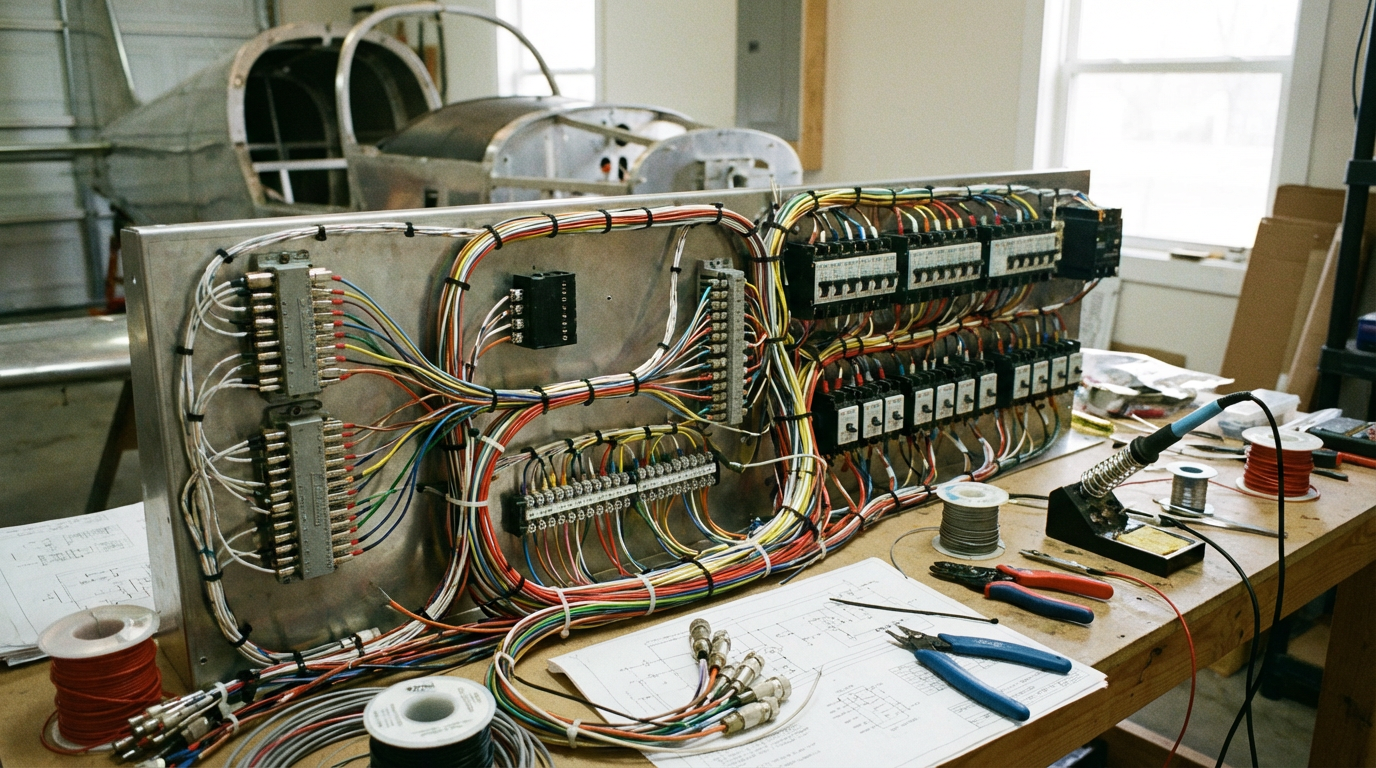

Mounted the Garmin G3X avionics tray and completed the initial wiring for the GDU 460 display. Pinned the D-sub connectors for the ADAHRS and engine monitoring wires. CAN bus terminated with proper 120-ohm termination resistors at each end. System powered up successfully — display shows startup screen.
